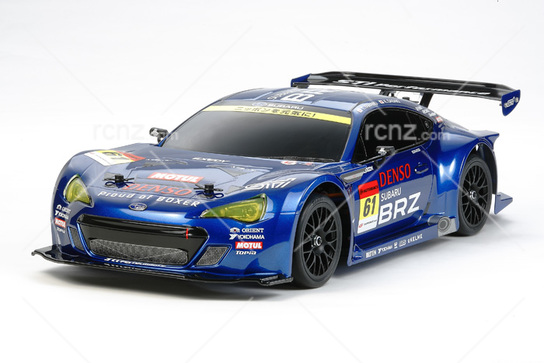

Tamiya - 1/10 Subaru BRZ R&D Sport TA-06 Kit

Manufacturer: Tamiya Product Code: 58548

58548 1/10 Subaru BRZ R&D Sport TA-06 kit

Out of

Out of Stock In-Stock Alert


Subaru created the Subaru BRZ R&D Sport race car for the GT300 racing class during the 2012 Super GT season. The BRZ from Team R&D Sport features a 2-liter turbocharged boxer 4-cylinder engine capable of over 300hp, a 4-wheel double wishbone suspension actuated via pushrods, and a sleek body shape form with flared front/rear fenders, rear diffuser, and large rear wing. The Tamiya 1/10 scale Radio Control replica is matched up to Tamiya's 6th generation intermediate class 4WD touring car platform. The TA-06 features a four-wheel drive system that uses a clever combination of belts and gears to provide the best of both technologies.ation of belts and gears to provide the best of both technologies.


  • Scale : 1/10
  • Construction type : assembly kit
  • Terrain use : on-road
  • Drive-train : 4WD
  • Drive type : belt
  • Drive line : dog bone
  • Differential type : sealed oil-filled gear
  • Suspension : fully independent double wishbone
  • Steering mechanism : bell-crank
  • Shock damper : oil-filled damper
  • Shock damper material : plastic
  • Tire type : rubber
  • Tire tread : slick
  • Body material : Clear Polycarbonate
  • Chassis material : plastic
  • Electronic Speed Control (ESC) : not included
  • LED Light buckets : no
  • LED lights : no
  • Motor : not included
  • Bearings : shielded ball bearing
  • Adjustable camber : yes
  • Adjustable toe angles : front and rear
  • Adjustable ground clearance : yes
  • Adjustable gear ratio : yes
  • Adjustable wheelbase : fixed
  • Adjustable track width : fixed
  • Adjustable shock angle : yes
  • Special feature 1 : Includes complete ball bearings
  • Special feature 2 : Low-Friction Drive Belts (174mm, 453mm), accompanied by a GEARBOX rear-end
  • Special feature 3 : The motor is installed at the mid-rear position which helps improve traction for the rear wheels
  • Special feature 4 : Comes equipped with aluminum motor plate and aluminum spur gear holder from the TA-05 chassis platform
  • Special feature 5 : Compatible with TA05 and TA06 touring car and sports car body sets
  • Special feature 6 : Suspension parts from the previous TA-05 platform are used on the new TA-06. (short reversible suspension, steering blocks, castor blocks and optional aluminum suspension mounts) are all transferable
  • Special feature 7 : Chassis battery compartment is compatible with NiCd, NiMh, LiFe and LiPo battery technologies
  • Special feature 8 : The battery pack can be accessed from the underside of the chassis by removing the battery cover
  • Special feature 9 : Two front suspension configurations: IFS (Inboard Front Suspension using rocker arms) and Standard outboard suspension is possible with the kit-included damper stay parts
  • Special feature 10 : Motor, battery/charger and R/C radio gear, ESC (electronic speed Control) are all sold separately and required to complete the kit
  • Requires A : 7.2 battery & charger
  • Requires B : polycarbonate paint
  • Requires C : 2-channel radio gear
  • Requires D : electronic speed control
