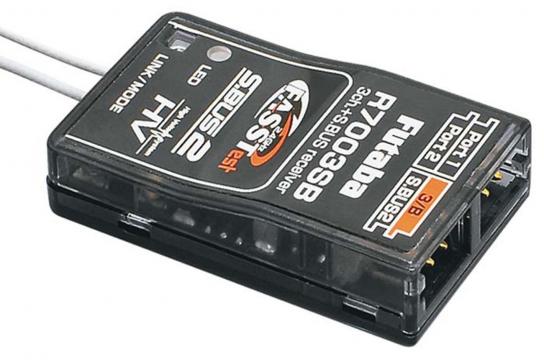

Futaba R7003SB S.Bus2 2.4GHz FASSTest Telemetry Receiver

This is the Futaba R7003SB FASSTest 2.4GHz Bidirectional S.BUS2/S.BUS Port and Conventional System Receiver.

FEATURES:

• Compatible with Futaba FASSTest 2.4GHz transmitters

INCLUDES:

• Futaba R7003SB FASSTest 2.4GHz Receiver with EXT-VOL cable and Instructions

REQUIRES:

• S.BUS2/S.BUS servos

SPECS:

• Dimensions: 0.89 x 1.47 x 0.37' (22.5 x 37.4 x 9.3mm)

• Weight: 0.25oz (7.2g)

• Power Requirement: 3.7-7.4V (voltage range, 3.5-8.4V)

• Extra Voltage Port: (port2) 'EXT-VOL cable and CA-RVIN-700' of an option is used: 0 - 70V DC

COMMENTS:

• If this receiver is not used with an S.BUS2/S.BUS system, only three channels are operational. If used with an S.BUS2/S.BUS system the maximum number of channels of the transmitter can be used.
