Joysway - DragonFlite DF95 Sail Winch Servo image

Joysway - DragonFlite DF95 Sail Winch Servo

Manufacturer: Joysway Hobby Product Code: J881226


881226 DragonFlite DF95 Sail Winch Servo

price
$84.00
Dispatch
Available - Ships in 2-3 Business Days

881226 Winch Servo Set for the DF95 Joysway yacht

FEATURES:
-- High performance digital  sail winch servo
-- High precision metal gears
-- Dual ball bearings
-- High quality DC motor

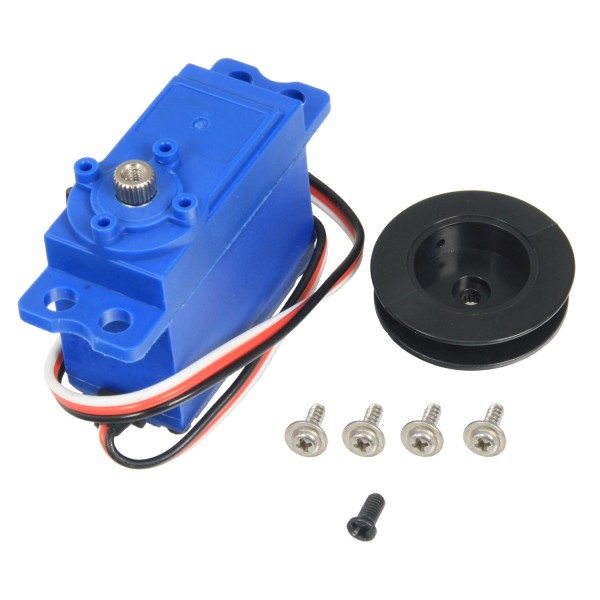

Includes:
1 x 30mm Single Head Drum
1 x Machine Milled Drum Horn Screw
4x Stainless Steel Pan Head Screws

SPECIFICATIONS:
Turn: 2-2.3T
Working frequency: 1520μs/330Hz
Operating Voltage Range: DC4.8~6.0V
Speed(4.8V) :0.6sec/360 degree
Speed(6.0V) :0.5sec/360 degree
Torque(4.8V) :7.5kg.cm (104.18oz/in)
Torque(6.0V) :8.8kg.cm (122.23oz/in)
Running Current: 0.12~0.14A (at no load)
Working Current: 0.40~0.50A
Stall Current : 1.80~2.2A
Size: 40.5X20.2X38mm(1.59X0.80X1.50in )
Weight: 58g (2.05oz)
Connector Wire Length: JR 265mm (10.43in)
