Tamiya - 1/10 Avante 2011 4WD Kit
Manufacturer: Tamiya Product Code: 58489

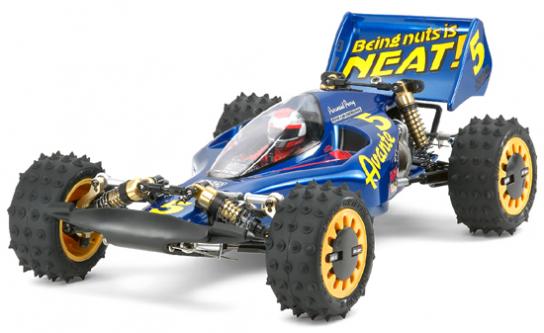

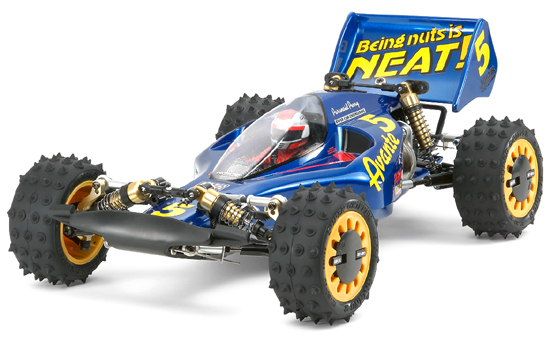

58489 1/10 Avante 2011 4WD Kit
In March 1988, Tamiya released an electric R/C 4WD racing buggy called the "Avante" and it has since become a special machine in Tamiya's R/C history. The machine featured a unique shaft-driven 4WD system which was taken from Tamiya's first 4WD R/C buggy, the Hotshot. It also featured a highly sophisticated design including a FRP double-deck chassis layout, longitudinal motor & battery positions, and a formula-type body with chassis fairing. It was equipped with innovative components such as a compact gearbox with 3 small planetary gears, a center diff to increase stability, a fully adjustable suspension, and cam-lock wheel caps.
The Avante was a distinctive R/C machine which featured an innovative design. After 20 years, some of the Avante's mechanisms have become standard features on modern R/C cars. The ultimate pure racing buggy returns in 2011.
Product Specifications (Specifications subject to change)
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | assembly kit |
| Terrain use | off-road |
| Drive-train | 4WD |
| Drive type | shaft |
| Drive line | universal |
| Differential type | gear |
| Suspension | fully independent double wishbone |
| Steering mechanism | bell-crank |
| Shock damper | oil-filled damper |
| Shock damper material | aluminum |
| Tire type | rubber |
| Tire tread | pin spike |
| Body material | Clear Polycarbonate |
| Chassis material | carbon fiber plate |
| Electronic Speed Control (ESC) | not included |
| ESC model | n/a |
| LED Light buckets | no |
| LED lights | no |
| Motor | 540-brushed type |
| Bearings | shielded ball bearing |
| Adjustable camber | yes |
| Adjustable toe angles | front and rear |
| Adjustable ground clearance | yes |
| Adjustable gear ratio | yes |
| Adjustable wheelbase | fixed |
| Adjustable track width | fixed |
| Adjustable shock angle | yes |
| Special feature 1 | Length: 420mm |
| Special feature 2 | Width: 240mm |
| Special feature 3 | Height: 115mm |
| Special feature 4 | Wheelbase: 260mm |
| Special feature 5 | Tread (L/R): 200mm |
| Special feature 6 | Minimum Ground Clearance: 40mm |
| Special feature 7 | Weight: 1300g |
| Special feature 8 | Double-Deck Frame |
| Special feature 9 | Tires (F/R): 38/88mm |
| Special feature 10 | Gear Ratio: 1:8.33 |
| Requires A | 7.2 battery & charger |
| Requires B | 2-channel radio gear & steering servo |
| Requires C | polycarbonate paint |
| Requires D | electronic speed control |
CLICK HERE for a radio, servo, battery, charger & paint combo
