Tamiya - 1/10 Mazda MX-5 M-05 Kit
Manufacturer: Tamiya
Product Code: 58624
58624 1/10 Mazda MX-5 M-05 Kit

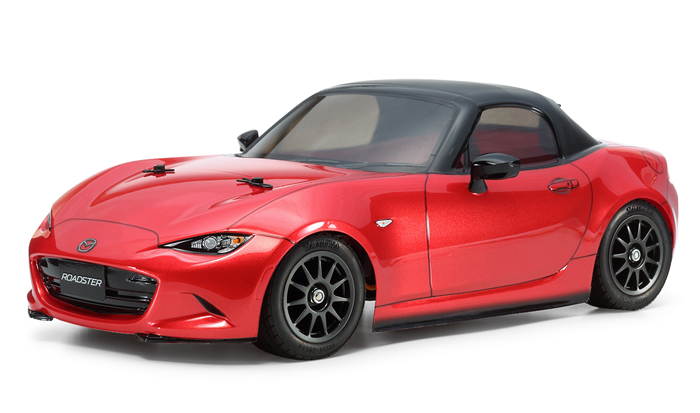

This R/C assembly kit model recreates the 4th generation of the Mazda MX-5 (also known as the Roadster in Japan and the Miata MX-5 in the U.S.), the iconic car with a heritage dating back to 1989 and total sales in excess of 950,000. The dynamic and lightweight car was made to amplify the thrill of driving, with a punchy 1.5-liter (2.0-liter in North American market cars) inline 4-engine and 6-speed transmission, while including modern must-haves such as advanced safety equipment.
The Tamiya R/C model faithfully captures the fun and maneuverability of the real life subject as it comes on the proven M-05 M-chassis platform. The M-05 is a simple to build FWD (front wheel drive) machine, which allows for plenty of after-market parts to be outfitted as you grow with your skill. The lightweight, narrow semi-monocoque frame offers an optimized weight distribution and a low center of gravity. A ground-hugging 4-wheel independent double wishbone suspension and a 3-piece steering linkage ensure excellent stability during high-speed cornering.
Three wheelbase lengths (210mm, 225mm, 239mm) are possible by simply switching the position of the rear suspension parts, enabling a wide range of body choices available from Tamiya.
Product Specifications (Specifications subject to change)
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | Assembly kit |
| Terrain use | On-Road |
| Drive-train | 2WD FWD |
| Drive type | Gearbox |
| Drive line | Dog bone |
| Differential type | Gear |
| Suspension | Fully independent double wishbone |
| Steering mechanism | Bell-crank |
| Shock damper | Friction damper |
| Shock damper material | Plastic |
| Tire type | Rubber |
| Tire tread | Radial |
| Body material | Polycarbonate |
| Chassis material | Plastic |
| Electronic Speed Control (ESC) | Not included |
| ESC model | Not included |
| LED Light buckets | No |
| LED lights | No |
| Motor | 540-brushed type |
| Bearings | Plastic bushing |
| Adjustable camber | Fixed |
| Adjustable toe angles | Front only |
| Adjustable ground clearance | Yes |
| Adjustable gear ratio | Yes |
| Adjustable wheelbase | Yes |
| Adjustable track width | Fixed |
| Adjustable shock angle | Fixed |
| Special feature 1 | The dynamic and compact form of the closed-top MX-5 is accurately recreated in durable polycarbonate. |
| Special feature 2 | Separate plastic parts are included to recreate side mirrors. |
| Special feature 3 | Comes with stickers to recreate Japanese, U.S. and rest-of-the-world market cars. |
| Special feature 4 | The nimble front wheel-drive M-05 chassis features a 225mm (M) wheelbase and has a wide range of option parts available to customize it. |
| Requires A | 2-channel radio gear& ESC |
| Requires B | 7.2 battery & charger |
| Requires C | Polycarbonate paint |
