Description:
CM703 7CH Compatible Receiver With Satellite PPM PWM Output
Features: 6 channels with PPM Output 3dbi gain antenna, 15dbi gain amplifier. Stronger anti-interference ability and farther control range. Servo Sync (feature does not work with module systems) Preset failsafe system Quick Connect
Compatibility: JR, DX6I, DX7, DX8, DSX7, DSX9, DSX11 General
Compatible Transmitter: JR, Spektrum and similar

Specification:
Compatible Receiver Band: DSM2/DSMX
Channel: 7+PPM output
Operating Voltage: 3.3V-9.6V
Weight: 10g (4.8g plastic case removed)
Brown-Out Voltage: 4.0v (Always supply power above this voltage)
PPM Output: Yes (supports RC multicopters)

Size Chart:
Dimensions (W x L x H): 47 x 24 x 14mm
Antenna Length Main RX: 13.5cm (2)

Package Includes:

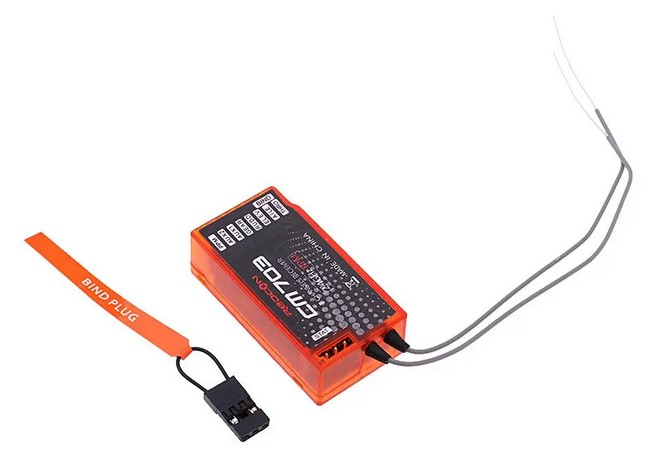

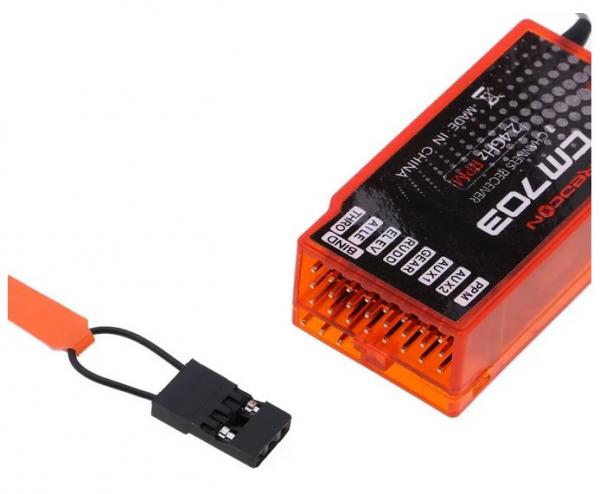

1 x CM703 Receiver
1 x Bind Plug
