Futaba - HC700 High Performance Brushless Heli Servo
Manufacturer: Futaba
Product Code: HPS-HC700

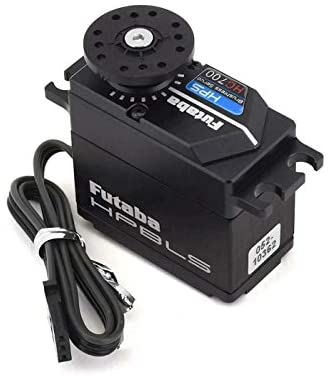

HC700 High Performance Brushless Heli Servo
The Futaba HPS-HC700 is the new high-performance servo for helicopter models (especially for F3C competition) that require medium torque (20kg/cm) but high operating speed (0.08 sec/60°) when used on 7.4V. In addition to those specifications the HC700 uses a new HPS brushless motor that was developed to draw the least current possible and produce very little heat. The aluminium case is only 40.5 x 21 x 37.8mm in size and is made from metal for optimal strength and cooling.
| Specifications | |
|---|---|
| High Voltage | Yes |
| S.BUS | S.Bus & S.Bus2 |
| Case | Metal |
| Weight | 73g |
| Gear Type | Metal |
| Dimensions | 40.5 x 21 x 37.8mm |
| Speed | 0.07 sec/60 deg @7.4V |
| Speed | 0.08 sec/60 deg @6.6V |
| Torque | 20 kg/cm @ 7.4V |
| Torque | 18 kg/cm @ 6.6V |
| Electric Motor | Brushless |
