Tamiya - 1/10 Ford Baja Bronco CC-02 Kit

Manufacturer: Tamiya Product Code: 58736

1/10 Ford Baja Bronco CC-02 Kit

Out of
Out of Stock
In-Stock Alert
We'll email you when it's back in stock

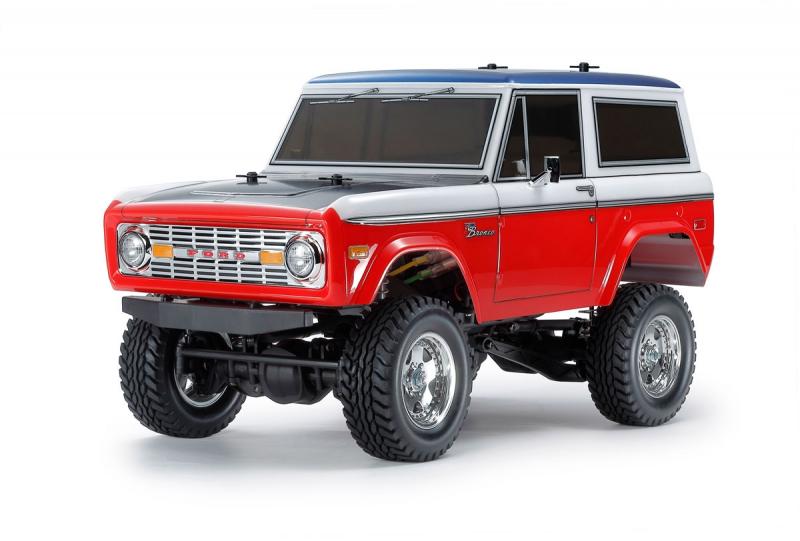

The vehicle depicted in this R/C assembly kit recreates the first-generation FORD Bronco on the cross-country CC-02 chassis. The first-generation Ford Bronco was relatively compact and extremely capable off-road, and this 4WD vehicle participated in numerous races thanks to custom fabrication teams of the day. The Baja Bronco edition was sold from 1971 to 1975 to commemorate its victories in prestigious Baja race events such as the Baja 500 and 1000. The Baja edition had a white and red body with a blue roof and black hood plus reinforced components such as suspension. This special Bronco enjoys great popularity even to this day!

CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with 12-spoke black wheels and semi-pneumatic rubber tires.

• 1/10 scale R/C model assembly kit. Length: 447mm, width: 204mm, height: 233mm. Wheelbase: 252mm (Medium).
• 1.2mm thick polycarbonate body.
• Features PC-ABS H parts (grilles, mirrors, spare tire cover and door handles) and metal-plated K parts (light cases).
• ABS plastic roof rack included.
• The CC-02 chassis has ladder frame which was inspired by full-size vehicles, provides both rigidity and cool styling, and allows stable performance even on tricky rocky and dirt roads.
• 12-spoke black wheels (width: 26mm, offset: +6) are paired with semi-pneumatic rubber tires.
• Includes type 540 motor, requires ESC
• Requires: 2-channel radio, steering servo, ESC, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint.


  • Adjustable Gear Ratio Yes
  • Bearings Plastic bushing
  • Body Material Polycarbonate
  • Body Stickers Included
  • Chassis Material FRP Fiberglass Reinforced Plastic
  • Chassis Type CC-02
  • Construction Type Assembly Kit
  • Differential Type Gear
  • Drive Type 4WD
  • Electronic Speed Control - Not included
  • Led Lights Included
  • Motor 540-brushed type
  • Required To Complete 2-channel radio, steering servo, ESC, 7.2volt battery & battery charger, and Tamiya PS paint.
  • Scale 1/10
  • Shock Damper CVA Oil Filled
  • Suspension 4-link
  • Terrain Use Multi-Purpose
