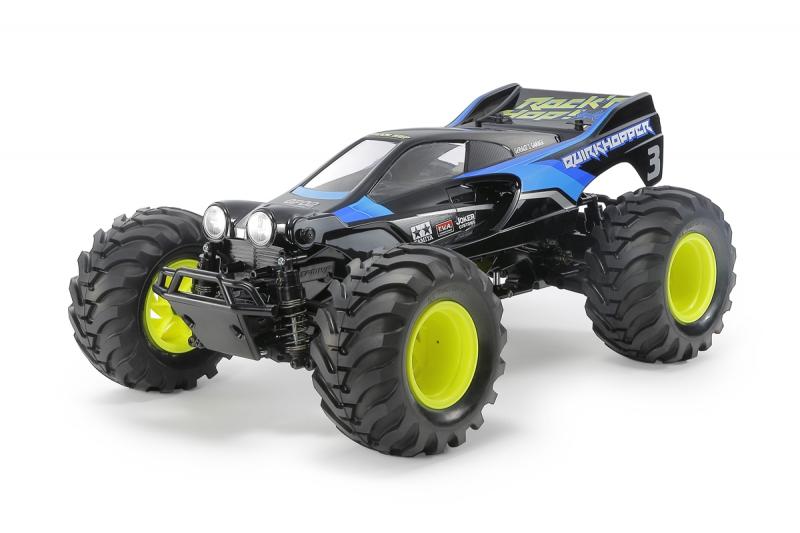

This R/C kit depicts the Tamiya Quirkhopper, an original body design mated on the easy to build GF-02 chassis.

About the GF-02 chassis
The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods.

• 1/10 scale R/C model assembly kit. Length: 400mm, width: 280mm, height: 175mm. Wheelbase 267mm.
• Paint the 0.7mm thick lightweight, rigid polycarbonate body as you wish.
• The front of the body features two headlights, and rear has wing integrated with large air intakes.
• 123mm large-diameter tires.
• Includes dedicated stickers.
• Includes 540-Type motor and ESC.
• Required to complete: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya PS paints.

Specifications

• Adjustable Gear Ratio Fixed
• Bearings Plastic bushing
• Body Material Polycarbonate
• Body Stickers Included
• Chassis Material ABS Plastic
• Chassis Type GF-02
• Construction Type Assembly Kit
• Differential Type Gear
• Drive Type 4WD
• Electronic Speed Control (esc) Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
• Motor 540-brushed type
• Required To Complete 2-channel radio, steering servo, 7.2-7.4volt battery & battery charger, and Tamiya PS
• Scale 1/10
• Shock Damper Friction damper
• Suspension Fully independent double wishbone
• Terrain Use Multi-Terrain
