Tamiya - 1/10 Mercedes Benz 190E TT-01E Kit
Manufacturer: Tamiya
Product Code: 58638
58638 1/10 Mercedes Benz 190E 2.5-16 TT-01E Evo.II Kit

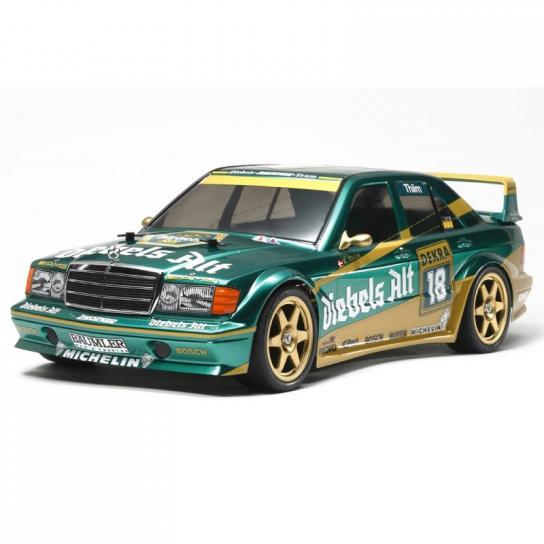

This is a R/C car replica of the 1992 Diebels-Alt sponsored Team Zakspeed Mercedes-Benz 190 E 2.5-16 Evo.II as it competed in the 1992 DTM racing series in Germany.
Tamiya has faithfully reproduced this sleek racing machine in 1/10 scale on the TT-01 Type E entry-level on-road chassis. The TT-01E chassis incorporates many features to make it easy for the new R/C kit builder to assemble and learn from. In addition to the TT-01E being an ideal platform to start from, R/C hobbyists can expand its potential by adding many of the Hop-Up Options available to increase the cars speed and performance.
Product Specifications (Specifications subject to change)
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | Assembly kit |
| Terrain use | On-Road |
| Drive-train | 4WD |
| Drive type | Gearbox |
| Drive line | Dog bone |
| Differential type | Gear |
| Suspension | Fully independent double wishbone |
| Steering mechanism | Bell-crank |
| Shock damper | Friction damper |
| Shock damper material | Plastic |
| Tire type | Rubber |
| Tire tread | Slick |
| Body material | Polycarbonate |
| Chassis material | Plastic |
| Electronic Speed Control (ESC) | Included |
| ESC model | TBLE-02S |
| LED Light buckets | No |
| LED lights | No |
| Motor | 540-brushed type |
| Bearings | Plastic bushing |
| Adjustable camber | Fixed |
| Adjustable toe angles | Front only |
| Adjustable ground clearance | Yes |
| Adjustable gear ratio | Yes |
| Adjustable wheelbase | Yes |
| Adjustable track width | Fixed |
| Adjustable shock angle | Fixed |
| Special feature 1 | Length: 445mm, width: 184mm |
| Special feature 2 | The 190 E form is expertly depicted in durable polycarbonate, with separate molded mirror, wing and grille parts, as well as a plated Mercedes-Benz 3-star emblem. |
| Special feature 3 | Marking stickers are included to recreate the numerous sponsor logos, car numbers, etc. |
| Special feature 4 | 6 spoke wheels (same design as Celica GT-Four '97 Monte-Carlo - Item 50770) are molded in gold, and paired with slick tires. |
| Special feature 5 | Torque-tuned motor is included. |
| Special feature 6 | Includes the Tamiya TBLE-02S ESC (brushless motor and brushed motor compatible) |
| Requires A | 2-channel radio gear |
| Requires B | 7.2 battery & charger |
| Requires C | Polycarbonate paint |
