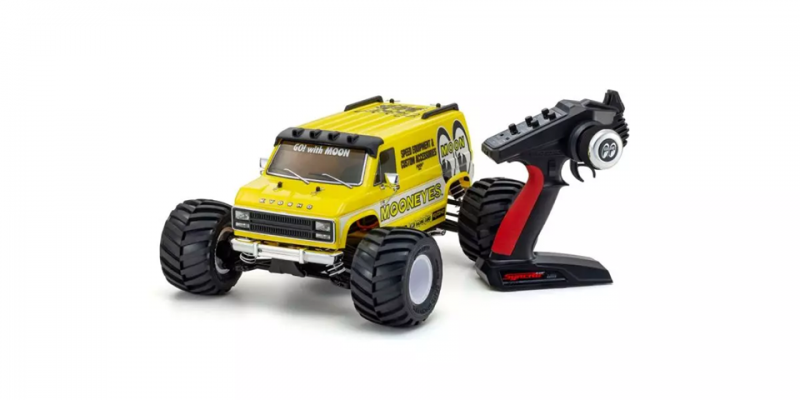

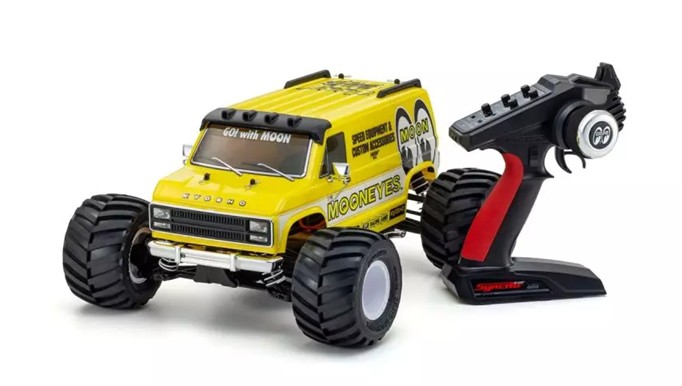

The Kyosho Fazer FZ02-L MadVan MOONEYES 1/10 is a unique 4WD Readyset RC car , blending the fun spirit of retro American vans with the cult MOONEYES universe . Inspired by Californian hot-rod culture, this MadVan boasts an ultra-detailed body in iconic MOONEYES colors, with injection-molded parts for exceptional realism. Based on the FZ02-L BT chassis , it prioritizes driving pleasure with a robust transmission, high-performance suspension, and predictable handling both on and off-road.

Technical specifications

• Scale: 1/10
• Type: Readyset – ready to ride
• Transmission: 4-wheel drive (4WD)
• Chassis: Fazer Mk2 FZ02-L BT
• Structure made of fiberglass-reinforced nylon 66
• MadVan MOONEYES ultra scale body with injected parts
• Independent front and rear suspension
• Big Bore Ø12 mm hydraulic shock absorbers
• Front and rear bevel gear differentials
• Complete ball bearings
• 550 G14L (14T) brushed motor with internal fan
• Transmission ratio: 11.69:1
• Wide, soft rubber tires with inserts
• LED pre-wiring (front, rear and visor)
• Hexagonal screws for easy maintenance

Dimensions & weight

• Chassis length: 490 mm
• Total length: 383 mm
• Chassis width: 307 mm
• Total width: 323 mm
• Total height: 200 mm
• Wheelbase: 274 mm
• Front/rear track: 250 mm
• Tires: Ø110 × 70 mm
• Weight: approx. 2,350 g with battery

Kit contents

• Kyosho Fazer FZ02-L chassis assembled with electronics
• MadVan MOONEYES bodywork, painted and decorated
• Syncro KT-231P+ 2.4 GHz Radio Control
• Hex key
• Combination wrench
• Adjustment parts
