Tamiya - 1/14 Ford Aeromax R/C Truck Kit
Manufacturer: Tamiya
Product Code: 56309

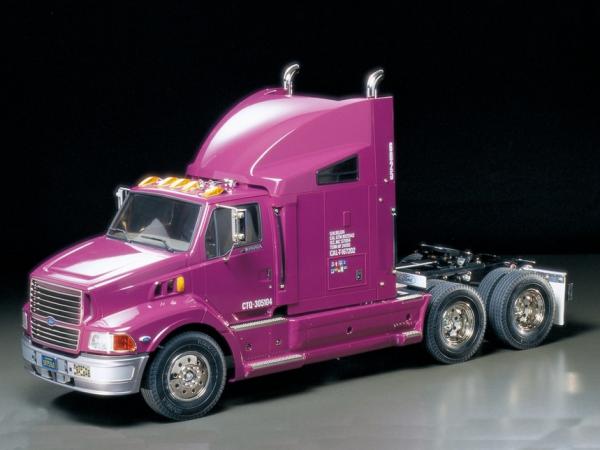

1/14 Ford Aeromax R/C Truck Kit
This R/C truck assembly kit recreates the timeless Ford Aeromax, with the honed body depicted artfully in plastic and plenty of interior detail too. A realistic chassis is based around a ladder frame with dampers, leaf springs and plenty of metal parts for a heavy duty finish. Its three-speed transmission can be operated via transmitter.
- Scale : 1/14
- Construction type : assembly kit
- Terrain use : on-road
- Drive-train : 2-axle semi

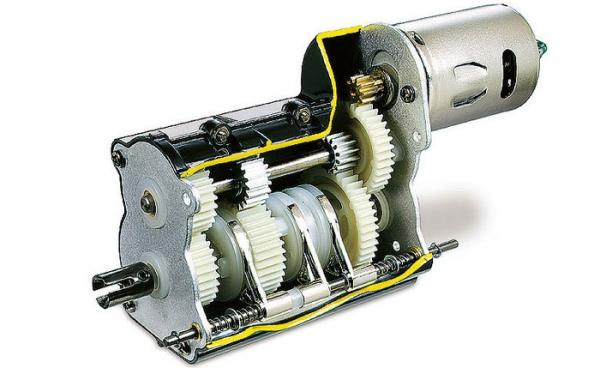

- Drive type : 3-speed
- Drive line : solid axle
- Differential type : gear
- Suspension : leaf spring
- Steering mechanism : bell-crank
- Shock damper : friction damper
- Shock damper material : aluminum
- Tire type : rubber
- Tire tread : radial
- Body material : ABS Plastic
- Chassis material : aluminum
- Electronic Speed Control (ESC) : not included
- ESC model : n/a
- LED Light buckets : yes
- LED lights : no
- Motor : 540-brushed type
- Bearings : metal and plastic bushings
- Adjustable camber : fixed
- Adjustable toe angles : fixed
- Adjustable ground clearance : fixed
- Adjustable gear ratio : fixed
- Adjustable wheelbase : fixed
- Adjustable track width : fixed
- Adjustable shock angle : fixed
- Special feature 1 : Length: 24.17 inches (614mm) Width: 7.48 inches (190mm)
- Special feature 2 : Wheelbase: 17.60 inches (447mm)
- Special feature 3 : Tread F/R: 156/138mm
- Special feature 4 : Tire Width: F/R both 22mm
- Special feature 5 : Weight: 6.39 lbs. (2900g)
- Special feature 6 : Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
- Special feature 7 : Wheels & Tires: Chrome/Radial
- Requires A : 7.2 battery & charger
- Requires B : 4-channel radio gear
- Requires C : electronic speed control
- Requires D : TS plastic model paint
