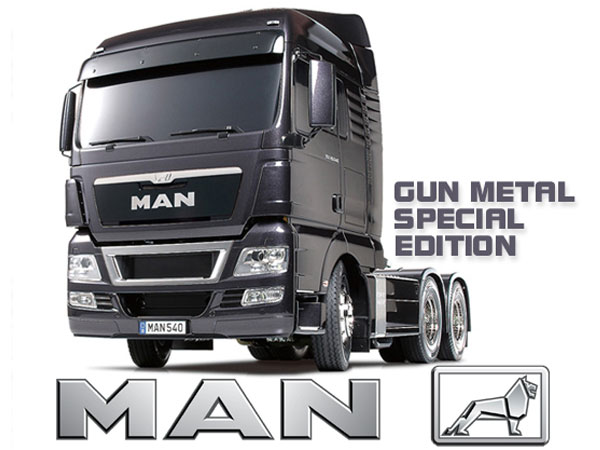

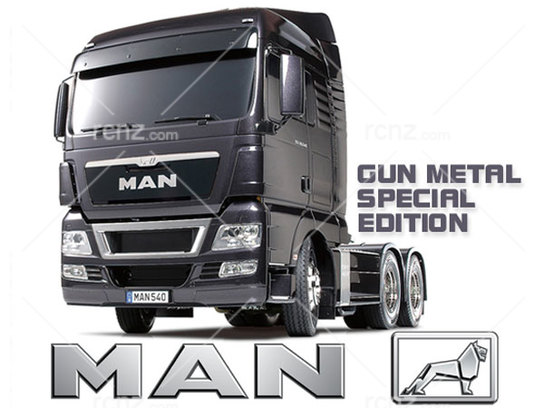

Tamiya - 1/14 MAN TGX 26.540 6x4 XLX Kit
Manufacturer: Tamiya
Product Code: 56346
56346 1/14 MAN TGX 26.540 6x4 XLX Gun Metal Edition kit
This is a special edition of Item 56325 MAN TGX 26.540 6x4 XLX. The cab, F, H, K, M and CC parts of the kit have been molded in Gray and pre-painted in Gun Metal (Tamiya Color TS-38) for a cool look, with a durable coating applied to protect the paintwork from damage.
Product Specifications
| Type | Detail |
|---|---|
| Scale | 1/14 |
| Construction type | Assembly kit |
| Terrain use | On-Road |
| Drive-train | 2WD |
| Drive type | Gearbox |
| Drive line | Dog bone |
| Differential type | Gear |
| Suspension | Leaf spring |
| Steering mechanism | Direct servo |
| Shock damper | Oil-filled damper |
| Shock damper material | Aluminum |
| Tire type | Rubber |
| Tire tread | Radial |
| Body material | ABS Plastic |
| Chassis material | Aluminum & plastic |
| Electronic Speed Control (ESC) | Not included |
| ESC model | N/A |
| LED Light buckets | Yes |
| LED lights | No |
| Motor | 540-brushed type |
| Bearings | Metal and plastic bushings |
| Adjustable camber | Fixed |
| Adjustable toe angles | Front only |
| Adjustable ground clearance | Fixed |
| Adjustable gear ratio | 3-speed transmission |
| Adjustable wheelbase | Fixed |
| Adjustable track width | Fixed |
| Adjustable shock angle | Fixed |
| Special feature 1 | Length: 458mm, Width: 193mm, Height: 298mm, Wheelbase: 272mm. |
| Special feature 2 | Cab, F, H, K, M and CC parts are replaced with pre-painted Gun Metal color parts. |
| Special feature 3 | The model features a realistic body and a 3-axle chassis with durable ladder frame. |
| Special feature 4 | When controlled with a separately available R/C system, the 3-speed transmission enables authentic gear changes while driving. |
| Special feature 5 | Metal leaf springs and friction dampers enable realistic suspension movement. |
| Special feature 6 | Cabin tilts forward just like the actual truck. |
| Special feature 7 | The included coupler enables connection with any currently available Tamiya 1/14 scale trailer. |
| Special feature 8 | The realistic interior includes seats and dashboard while metal-plated parts as well as metal transfer emblems enhance exterior detail. |
| Requires A | 4-channel radio gear |
| Requires B | Electronic speed control |
| Requires C | 7.2 battery & charger |
| Requires D | TS plastic model paint |
